Two Speed Gearboxes

The ELITE HFT2S two-speed gearboxes are mainly used in machine tool main spindle drives, test benches, and applications requiring high torque.

Get ln Touch

Application

Brief introduction

The ELITE HFT2S two-speed gearboxes are mainly used in machine tool main spindle drives, test benches, and applications requiring high torque.

For example, the gearbox can be used in turning machines (horizontal B3/B5) and machining centers (vertical V1/V3) due to its variable installation positions (see page 10). It is also suitable for many systems where torque increase and/or speed reduction is required.

Fearture

Designed for main feed drives on machine tools
Robust and modular design
Fast changeover between high speed and high torque
High-precision, helical planetary gear unit
High efficiency
Lower noise
Wide range of machining materials
Wide machining range
Energy saving
Interchangeable ZF,BF and GTP solutions
Application-specific solutions

Specifications
Torque range：400 ... 2200 Nm
Gear ratios
4 ... 5.5
Input speed
up to 10,000 rpm
Brake options
Applicable motors
Motor adapter for simple and safe attachment of different main feed motors

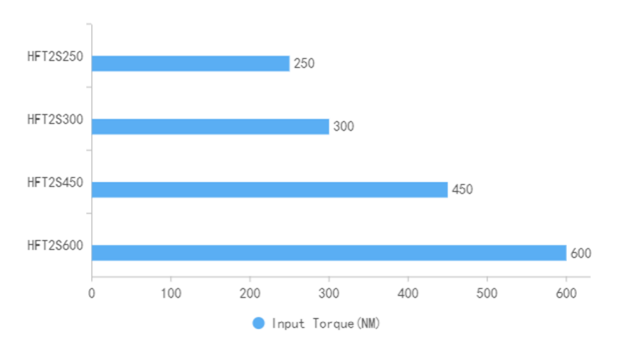

Torque Range Charts

Tecnical Data

Model	Input Torque（Nm）	Ratio	Rated Speed（Rpm）	Motor frame size（Mm）	Weight(Kg)
HFT2S0250	250	4,5.5	1500	132	70
HFT2S0300	300	4,5.5	1500	160	90
HFT2S0450	450	4,5.5	1000	160/180	150
HFT2S0600	600	4,5.5	1000	180	180
