Wheel Drives

The ELITE planetary wheel drives are available in 34 different sizes, featuring a compact design, high torque, high load strength, axial and radial load capacities, a wide range of ratios, and an optional disengagement device for towing the vehicle in an emergency. Elite will provide customized wheel drive solutions for any specific application.

Get ln Touch

Application

Brief introduction
The ELITE wheel drive series is the best solution for designing wheeled off-road machinery. Our planetary gears are made from alloy steels, ensuring maximum performance combined with extremely high resistance to shocks, as well as radial and axial stresses.
The ELITE planetary wheel drives are available in 34 different sizes, featuring a compact design, high torque, high load strength, axial and radial load capacities, a wide range of ratios, and an optional disengagement device for towing the vehicle in an emergency. Elite will provide customized wheel drive solutions for any specific application.

Fearture
Compact structure and space-saving design planetary gearbox
3-7 Planetary gears per stage
Tapered roller bearings
Structural parts in high quality forged steel
Notchless ground tooth root
Different ratios
Integrated disc-brake
High availability by highest teeth and production quality
Rotating flange with bolts suitable for wheel mounting
Interchangeable with Rexroth,Zollern,Bonfiglioli ,Dana, Brevini,Liebherr O&K ,PMP,ZF,Comer,Reggiana Riduttori(RR)and OMNI solutions

External dynamic disc or drum brakes （optional）
Oil drain cover and/or spindle side（optional）
Disconnect mechanism （optional）

Specifications
Torque range：3000 ...560.000 Nm
Gear ratios
4 ... 185
Input speed
up to 4,000 rpm
Brake options
Hydraulically released parking brake on request
Applicable motors
Cartridge axial piston hydraulic motors
Flanged axial piston hydraulic motors
Hydraulic orbit motors
Electric motor

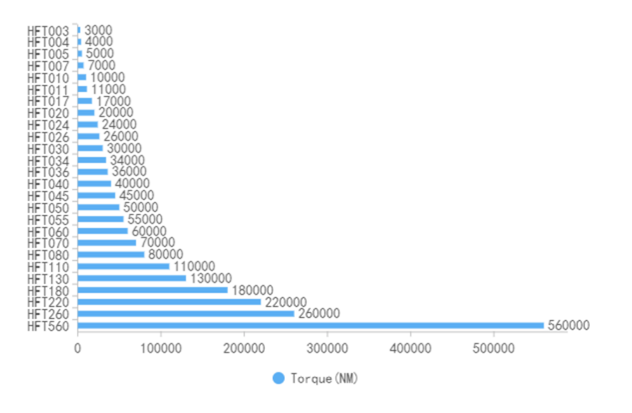

Torque Range Charts

Tecnical Data

Model	Max Output Torque（Nm）	Ratio	Max.Input Speed（Rpm）	Orbital HYD.Motor	Piston Motor	Electric Motor	Oil Quantity（L）	Weight(Kg)
HFT003	3000	6-65	4000	√	√	√	1-1.3	35-55
HFT004	4000	4-55	4000	√	√	√	1-1.3	40
HFT005	5000	5-55	4000	√	√	√	1-1.3	50
HFT007	7000	11-57	4000	√	√	√	1.1	50
HFT010	10000	25-63	4000	√	√	√	1.5	56-63
HFT011	13000	26-186	4000	√	√	√	2	80
HFT017	17000	26-141	4000	√	√	√	2.5	90
HFT020	20000	27-51	4000	√	√	√	2.5-3	105
HFT040	40000	24-140	4000	√	√	√	6	180
HFT045	45000	40-160	4000	√	√	√	6	195
HFT050	50000	40-185	4000	√	√	√	7	228
HFT055	55000	73-185	3500	√	√	√	7	230
HFT060	60000	75-170	3500	√	√	√	7	230
HFT070	70000	94-180	3500	√	√	√	7	330
HFT080	90000	76-185	3500	√	√	√	8	350
HFT110	13000	95-185	3500	√	√	√	11	400
HFT130	14000	95-185	3500	√	√	√	11	415
HFT180	180000	67-185	3000	√	√	√	16	680
HFT220	220000	49	5000	√	√	√	18	850
HFT260	260000	36	5000	√	√	√	20	1100
HFT560	560000	36	5000	√	√	√	30	2000
