Travel Drives

ELITE travel drive series units are unsurpassed in crawler or milling machines. Thanks to their compact, rugged design, high torque and load capacities, and optional mechanical lifetime seals, these solutions are the best possible option for such machines.

Get ln Touch

Application

Brief introduction

ELITE travel drive series units are unsurpassed in crawler or milling machines. Our planetary gears are made from alloy steels, ensuring maximum performance combined with extremely high resistance to shocks, as well as radial and axial stresses. Thanks to their compact, rugged design, high torque and load capacities, and optional mechanical lifetime seals, these solutions are the best possible option for such machines. All units come with a fail-safe parking brake, and most offer the option of cartridge-type fixed or variable systems.

The ELITE travel drives are available in 36 different sizes. Elite will provide customized travel drive solutions for any specific application.

Fearture

Compact structure and space-saving design planetary gearbox

Robust main bearing system

Higher torque capacity

Higher load capacity

Widely Ratio

Integrated static multiple disk parking brake

Assembly of variable plug-in and fixed plug-in motors of different series possible

Rotating flange with threaded holes for tracked vehicle mounting

Composition up to 5 reduction stages planetary gearboxes

Simple mounting

Low-noise running operation

Easy oil change

Special seals for heavy-duty environmental conditions

Interchangeable with Rexroth,Zollern,Bonfiglioli ,Dana, Brevini,Liebherr O&K ,PMP,ZF,Comer,Reggiana Riduttori(RR)and OMNI solutions

External dynamic disc or drum brakes （optional）

Oil drain cover and/or spindle side（optional）

Disconnect mechanism （optional）

Specifications

Torque range：1.000 ... 800.000 Nm

Gear ratios

4 ... 739

Input speed

up to 4,000 rpm

Brake options

Hydraulically released parking brake on request

Applicable motors

Cartridge axial piston hydraulic motors

Flanged axial piston hydraulic motors

Hydraulic orbit motors

Electric motors

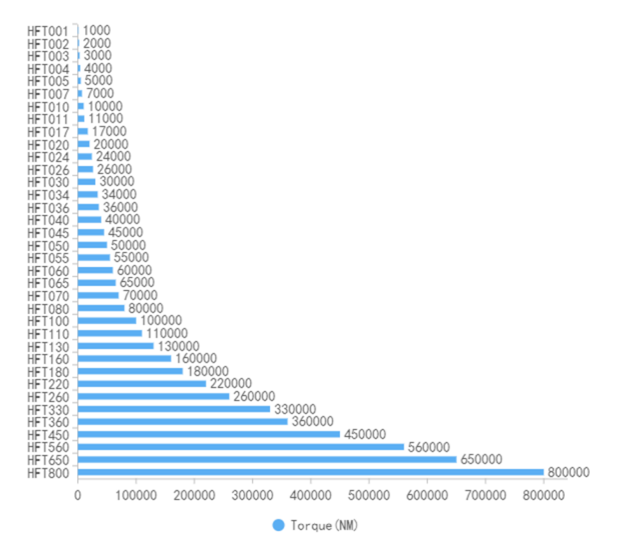

Torque Range Charts

Tecnical Data

Model	Max Output Torque（Nm）	Ratio	Max.Input Speed（Rpm）	Orbital HYD.Motor	Piston Motor	Electric Motor	Oil Quantity（L）	Weight(Kg)
HFT001	1000	5-51	4000	√	√	√	0.4	15
HFT002	2000	5-32	4000	√	√	√	0.9	20
HFT003	3000	6-65	4000	√	√	√	1-1.3	35-55
HFT004	4000	4-55	4000	√	√	√	1-1.3	40
HFT005	5000	5-55	4000	√	√	√	1-1.3	50
HFT007	7000	11-57	4000	√	√	√	1.1	50
HFT010	10000	25-63	4000	√	√	√	1.5	56-63
HFT011	13000	26-186	4000	√	√	√	2	80
HFT017	17000	26-141	4000	√	√	√	2.5	90
HFT020	20000	27-51	4000	√	√	√	2.5-3	105
HFT024	24000	44-170	4000	√	√	√	2.5-3	105-120
HFT026	26000	26-62	4000	√	√	√	3.5-4	140
HFT030	30000	23-42	4000	√	√	√	5	120
HFT034	34000	51	4000	√	√	√	5	140
HFT036	36000	12-173	4000		√	√	5	140-170
HFT040	40000	24-140	4000	√	√	√	6	180
HFT045	45000	40-160	4000	√	√	√	6	195
HFT050	50000	40-185	4000	√	√	√	7	228
HFT055	55000	73-185	3500	√	√	√	7	230
HFT060	60000	75-170	3500	√	√	√	7	230
HFT065	65000	37-55	3500	√	√	√	7	300
HFT070	70000	94-196	3500	√	√	√	7	330
HFT080	90000	76-206	3500	√	√	√	8	350
HFT100	11000	84-222	3500	√	√	√	10	350
HFT110	13000	95-215	3500	√	√	√	11	400
HFT130	14000	95-217	3500	√	√	√	11	415
HFT160	160000	78-251	3000	√	√	√	15	650
HFT180	180000	67-263	3000	√	√	√	16	680
HFT220	220000	96-293	3000	√	√	√	18	850
HFT260	260000	105-365	3000	√	√	√	20	1100
HFT330	330000	421	3000	√	√	√	27	1200
HFT360	360000	497	3000	√	√	√	27	1200
HFT450	450000	421-639	3000	√	√	√	28	1350
HFT560	560000	739	3000	√	√	√	30	2000
HFT650	650000	755	3000	√	√	√	30	2200
HFT800	800000	520 648	3000	√	√	√	40	3200
