Transit Mixer Drives

ELITE transit mixer drives (HYT series) are designed for the direct drum drive of truck-mounted concrete mixers with a drum working volume of 1–20 m³.

Get ln Touch

Application

Brief introduction
ELITE transit mixer drives (HYT series) are designed for the direct drum drive of truck-mounted concrete mixers with a drum working volume of 1–20 m³. In application, the drum of the concrete mixer is assembled to the driving flange of the planetary gearbox, which transmits torque from a fluid motor or electric motor to the concrete mixer drum. The gearbox also serves to mount the front part of the drum.

The ELITE transit mixer drives are available in 10 different sizes. Elite will provide customized transit mixer drive solutions for any specific application.

Fearture
Robust main bearing system
Higher torque capacity
Higher load capacity
Different ratios
Tilting output flange, evenly in all directions
Mounting frame for water tank
Water pump P.T.O.
Interchangeable with Bonfiglioli ,Brevini,O&K ,PMP,ZF,and OMNI solutions

Specifications
Torque range：10000 ... 100.000 Nm
Gear ratios
9 ... 144
Input speed
up to 4,000 rpm
Applicable motors
Axial piston motors to SAE Standard orbit motors
Applicable hydraulic motors
Electric motors

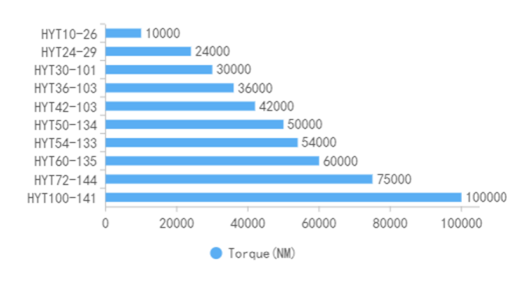

Torque Range Charts

Tecnical Data

Model	Max Output Torque（Nm）	Ratio	Max.Input Speed（Rpm）	Orbit motor	Piston Motor	Electric motor	WATER PUMP PTO	DRUM 9CAPACITY （m³）
HYT10	10000	9,26	600	√				1--2
HYT24	24000	29	800	√				2--3
HYT30	30000	101,132	2500		√			3--4
HYT36	36000	103	2500		√			5--6
HYT42	42000	103	2500		√			6--7
HYT50	50000	134	2500		√			8
HYT54	54000	133	2500		√			9--10
HYT60	60000	131,135	2500		√	√	√	10--12
HYT72	72000	123,130,144	2500		√	√	√	12--14
HYT100	100000	141	2500		√			16--20
