Slew Drives

ELITE slew drives are primarily used for rotating gear rings and large-diameter anti-friction slewing rings. These slewing gearboxes have proven their reliability under the harshest application conditions.

Get ln Touch

Application

Brief introduction
ELITE slew drives are primarily used for rotating gear rings and large-diameter anti-friction slewing rings. These slewing gearboxes have proven their reliability under the harshest application conditions.

With its slew drives, ELITE offers customers a series-produced product range covering numerous application areas. They have been successfully used for many years in mobile and rough terrain cranes, port equipment, truck cranes, excavators, forestry machines, utility vehicles, and special equipment where installation space is limited.

ELITE slew drives feature a modular design and are also available with an expanded scope of delivery (including motors, couplings, and brakes). There are fifteen gearbox sizes available, ranging from HFT-L 003 to HFT-L 110. The coaxial planetary gearboxes are offered as three-stage or four-stage units, with a wide range of gear ratios from i=4 to i=1,817. The maximum output torque is 11,000 Nm.

For each application, the pinion-slewing ring tooth pairing is inspected, and the pinion’s tooth form is optimized to ensure a long service life.

Fearture

Compact structure
High performance
Notchless ground tooth root
Stage compositions from 1 up to 5 reduction stages planetary gearboxes
Customizable output support front flange fixing solution
Integral output pinions as well as splined shaft with loose pinions
Integrated disc-brake
Suitable for various hydraulic and electric motors
Interchangeable with Rexroth,Zollern,Bonfiglioli ,Dana, Brevini,Liebherr O&K ,PMP,ZF,Comer,Reggiana Riduttori(RR)and OMNI solutions
Application-specific solutions

Specifications
Torque range：1.000 ... 11.000 Nm
Gear ratios
4 ... 1817
Input speed
up to 4,000 rpm
Brake options
Hydraulically released parking brake on request
Applicable motors
Cartridge axial piston hydraulic motors
Flanged axial piston hydraulic motors
Hydraulic orbit motors
Electric motors

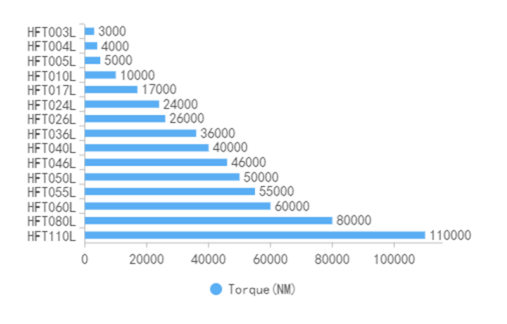

Torque Range Charts

Tecnical Data

Model	Max Output Torque（Nm）	Ratio	Max.Input Speed（Rpm）	Orbital HYD.Motor	Piston Motor	Electric Motor	Oil Quantity（L）	Weight(Kg)
HFT003L	3000	5-35	4000	√	√	√	0.5	45-55
HFT004L	4000	4	4000	√	√	√	0.8	43
HFT005L	5000	5-75	4000	√	√	√	1-1.3	65
HFT010L	10000	35-79	4000	√	√	√	2.1	93
HFT017L	17000	18-171	4000	√	√	√	3	125
HFT024L	24000	38-222	4000	√	√	√	4	150
HFT026L	26000	18-63	4000	√	√	√	5	190
HFT036L	36000	24-270	4000	√	√	√	6	220
HFT040L	40000	20-66	4000	√	√	√	7	235
HFT046L	46000	66-205	4000	√	√	√	8.5	275
HFT050L	50000	28-237	4000	√	√	√	9	316
HFT055L	55000	1817	4000	√	√	√	12	410
HFT060L	60000	26-510	3500	√	√	√	10	380
HFT080L	80000	40-190	3500	√	√	√	18	650
HFT110L	11000	29-219	3500	√	√	√	22	750
