Single Direct Drive
Brief Introduction
With more than 1,000 pump drive configurations up to 1,000 kW, we are sure to have the pump drive that meets your needs. The simplest pump drive available is a single pump direct drive, consisting of a flex plate and bell housing plate coupled to one hydraulic pump.
Our application engineers provide support to help you choose the best pump drive for your application.
Features
• High Quality
We use the latest manufacturing technology to ensure quality products for you.
• Fast Delivery
Normal product delivery is completed within 20–30 days; new products are completed within 45–60 days.
• Customization
We have a strong technical team that can design and customize pump drives to meet your needs according to your requirements. Housing customization is also available to address space constraints.
Specifications
• Type：Single Direct
• Pump rotation: Enginewise
• Housing Size: SAE 0, 1, 2, 3
• Flywheel size: 10”, 11.5”, 14”, 18”

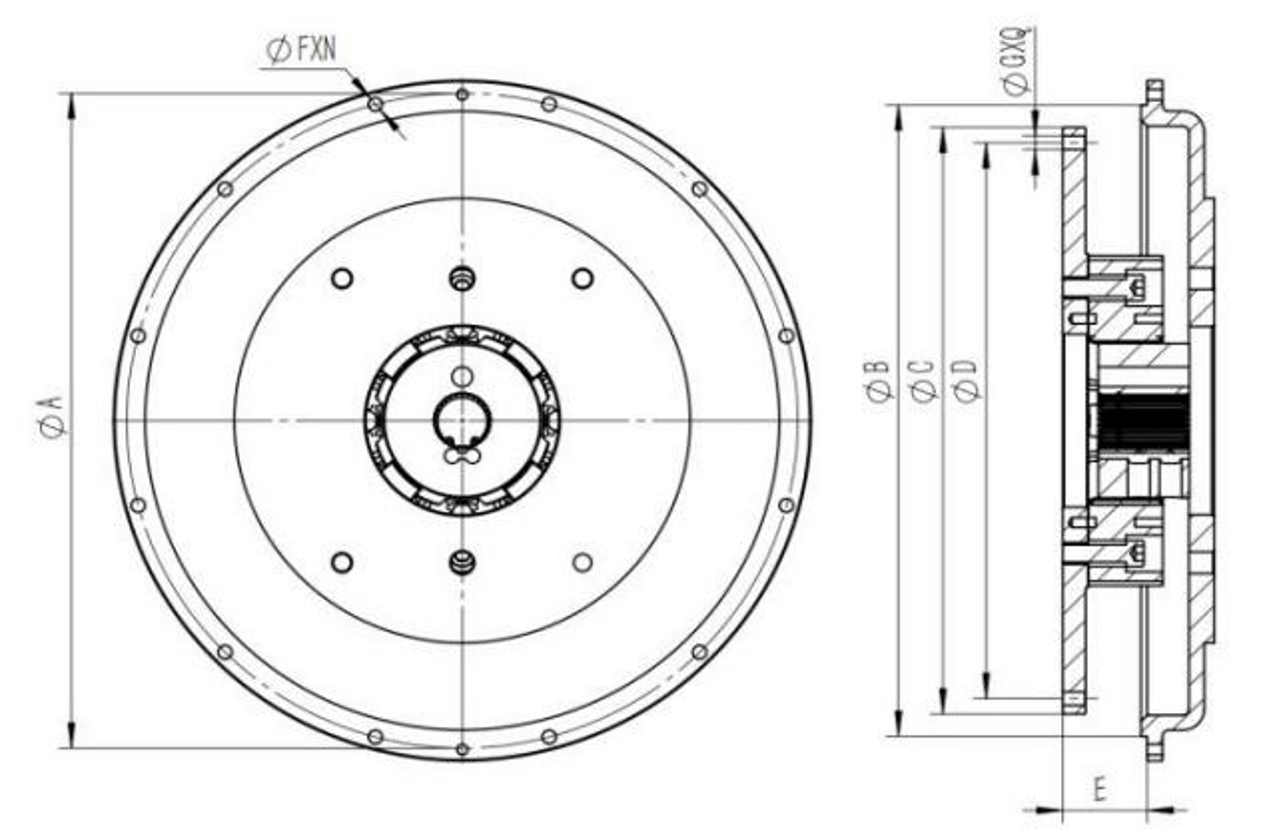

Housing size
| Size | A | B | F | N |
| SAE 0 | 679.45 | 647.7 | 13.5 | 16 |
| SAE 1 | 530.22 | 511.17 | 11 | 12 |
| SAE 2 | 466.72 | 447.68 | 11 | 12 |
| SAE 3 | 428.62 | 409.6 | 11 | 12 |
Coupling size
| Flywheel size | C | D | E | G | Q |
| 18” | 571.52 | 542.92 | 15.7 | 17 | 6 |
| 14” | 466.72 | 438.15 | 25.4 | 13 | 8 |
| 11.5” | 352.42 | 333.38 | 39.6 | 11 | 8 |
| 10” | 314.32 | 295.28 | 53.8 | 11 | 8 |
