Planetary Wheel Drive Units

ELITE HFTE planetary wheel drives incorporate an integrated, maintenance-free electric motor and offer significant benefits, including compact dimensions, low noise and high efficiency. HFTE Series drives are designed for use with all kinds of aerial platforms and other types of mobile machinery

Get ln Touch

Application

Brief Introduction

ELITE offers a new range of drive wheels with integrated electric motors, which guarantee maximum performance with all the advantages of electric traction.

ELITE HFTE Series drives are designed for use with all kinds of aerial platforms, zero-turn mowers, golf carts, and other types of mobile machinery, for indoor and outdoor use. This advanced powertrain solution uses a two- or three-stage gearbox offering reduction ratios of up to 1:227 to satisfy the widest possible range of needs.

The electric drive series is ELITE’s response to a market seeking low-emission, high-efficiency products.

Features

•   Two- or three-stage planetary gear drive with reduction ratios of up to 1:227
•   Low operating noise due to gear-mesh technology
•   High performance, capability, and efficiency
•   Light and compact design (high power density)
•   Easy installation and friendly customer support
•   Maintenance-free
•   Complete package: wheel drive + motor or wheel drive only
•   Brake available on request
•   Customized solutions for all applications

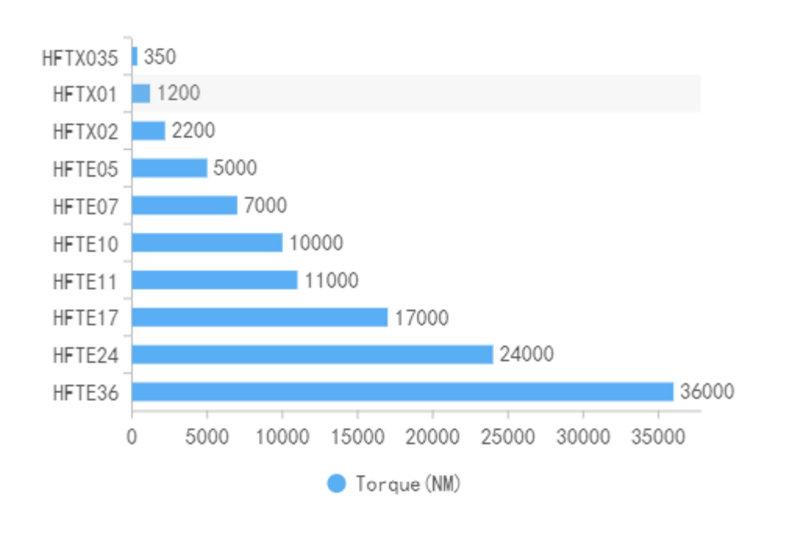

Torque Range Charts

Tecnical Data

Model	Max Output Torque（Nm）	Ratio	Max.Input Speed（Rpm）	Electric Motor	Oil Quantity（L）	Weight(Kg)
HFTX035	350	22-48	4500	√	0.4	15
HFTX01	1200	22-51	4500	√	0.5	22
HFTX02	2200	22-32	4500	√	0.45	16
HFTE03	3000	22-65	4500	√	1-1.3	35-55
HFTE05	5000	5-55	4500	√	1-1.3	50
HFTE07	7000	11-134	4500	√	1.1	50
HFTE10	10000	25-119	4500	√	1.5	56-63
HFTE11	13000	26-186	4500	√	2	80
HFTE17	17000	26-196	4500	√	2.5	90
HFTE24	24000	44-227	4500	√	2.5-3	105-120
HFTE36	36000	12-173	4500	√	5	140-170
