Planetary Steering Axle

Brief Introduction

ELITE planetary steering drive axle integrates steering, driving, service and parking brakes (optional), differential limited slip (optional), and swing installation (optional). A variety of axles developed based on customers' specific working conditions are widely used in various self-propelled axle-driven vehicles and equipment, including construction machinery, agricultural machinery, forestry machinery, and underground mining machinery. They serve as an excellent alternative to Dana, Carraro, and Kessler axle products.

The ELITE planetary steering drive axles are available in 4 different sizes. Elite will provide customized planetary steering axle solutions for any specific application.

Features

•   Available in multiple configurations
•   A wide range of ratios makes this axle ideal for optimum maneuverability and traction on widely varying ground conditions
•   Delivers maximum performance and offers easy, low-cost service
•   Interchangeable with Dana, Comer, Carraro and Kessler solutions

Specifications

•   Torque range：14,000 ... 60,000 Nm
•   Input speed：up to 4,000 rpm
•   Brake options：Hydraulically released parking and service brake on request
•   Applicable motors：
o   Cartridge axial piston hydraulic motors
o   Flanged axial piston hydraulic motors
o   Hydraulic orbit motors
o   Electric motors

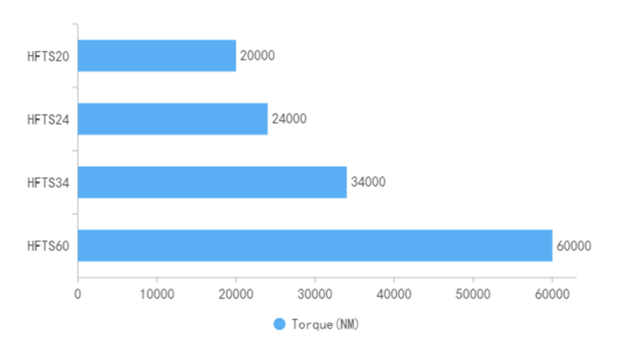

Torque Range Charts

Tecnical Data

Model	Max.output Torque(Nm)	Total Ratios	Bevel set Ratios	Planetary Reduction Ratios	Load Capaity(KN),Dynamic	Load Capaity(KN),Static
HFTS20	14000/20000	9,0;9.7;11,9;13.6;14.1/ 12.8;13.7;16.9;19.3;20.0	2.134/2.286/2.818/3.222/3.333	4.235/6	55KN	110KN
HFTS24	24000	14.31/17.45/20.67	2.385/2.908/3.445	6	80KN	200KN
HFTS34	34000	14.31/17.45/20.67	2.385/2.908/3.445	6	120KN	300KN
HFTS60	60000	17.45/20.67/22	2.90873.445/3.667	6	150KN	375KN
