Planetary Rigid Axle
Brief Introduction
ELITE planetary rigid axles are engineered to enhance performance, tractive effort, and operator comfort in harsh working environments. They also support on-road mobility through high torque density, high reliability, and robustness. Our power-dense designs deliver maximum performance in a compact package, improving reliability, durability, stability, and safety.
ELITE offers a broad range of dedicated solutions tailored to different application needs, such as torque density, specific duty cycles, braking performance, safety standards, and robustness. These axles serve as an excellent alternative to Dana, Carraro, and Kessler axle products.
The ELITE planetary rigid axles are available in 6 different sizes. Elite will provide customized planetary rigid axle solutions for any specific application.
Features
• Suited to a variety of off-highway applications
• Wide range of ratios available
• Suitable for hydrostatic and hydrodynamic drivelines
• Multiple configurations available
• Interchangeable with Dana, Comer, Carraro and Kessler solutions
Specifications
• Torque range：14,000 ... 120,000 Nm
• Input speed：up to 4,000 rpm
• Brake options：Hydraulically released parking and service brake on request
• Applicable motors：
o Cartridge axial piston hydraulic motors
o Flanged axial piston hydraulic motors
o Hydraulic orbit motors
o Electric motors

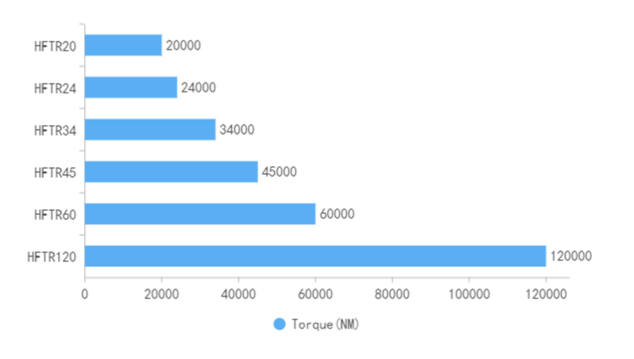

Torque Range Charts
Tecnical Data
| Model | Max.output Torque(Nm) | Total Ratios | Bevel set Ratios | Planetary Reduction Ratios | Load Capaity(KN),Dynamic | Load Capaity(KN),Static |
| HFTR20 | 14000/20000 | 9,0;9.7;11,9;13.6;14.1/ 12.8;13.7;16.9;19.3;20.0 | 2.134/2.286/2.818/3.222/3.333 | 4.235/6 | 55KN | 110KN |
| HFTR24 | 24000 | 14.31/17.45/20.67 | 2.385/2.908/3.445 | 6 | 80KN | 200KN |
| HFTR34 | 34000 | 14.31/17.45/20.67 | 2.385/2.908/3.445 | 6 | 120KN | 300KN |
| HFTR45 | 45000 | 47.42 | 6.857 | 6.9 | 100KN | 250KN |
| HFTR60 | 60000 | 17.45/20.67/22 | 2.90873.445/3.667 | 6 | 150KN | 375KN |
| HFR120 | 120000 | 22 | 3.667 | 6 | 400KN | 800KN |
