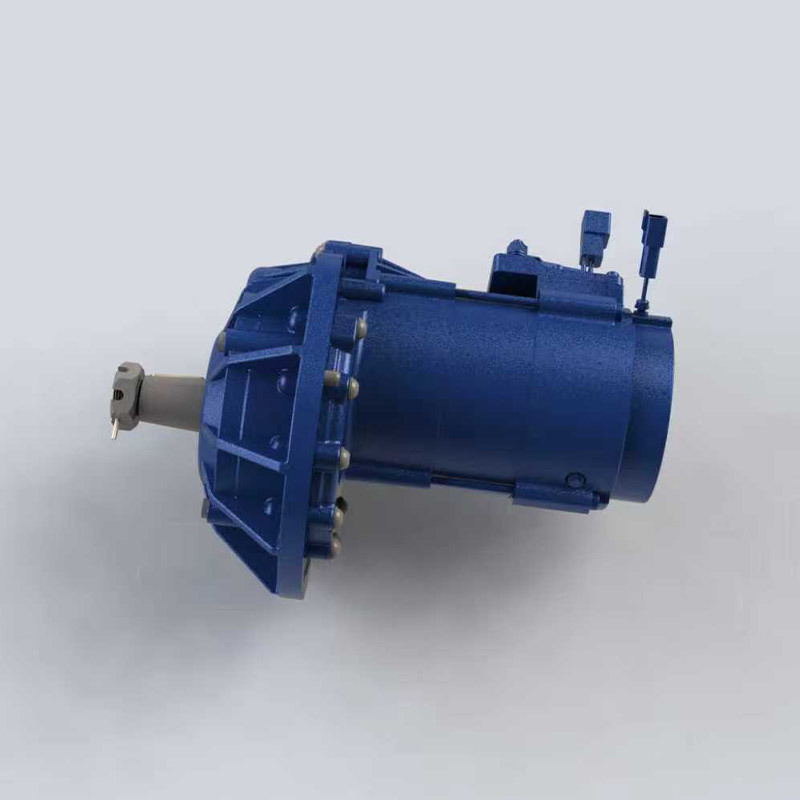

Parallel Shaft Wheel Drive Units
Brief Introduction
Parallel shaft wheel-drive gearboxes offer an extremely reliable and cost-effective alternative to planetary wheel drives.
Our parallel shaft gearboxes, featuring aluminum alloy housings, stand out for their innovative lightweight and compact design, providing excellent solutions for your mobile equipment.
ELITE Parallel Shaft Wheel Drive gearboxes are available with a wide range of options:
• Electric motors: radial and axial flux permanent magnet, AC induction, and low-voltage DC
• Integral spring-applied, electric-release braking systems
• Matched gear ratios to suit 1-, 2-, or 3-stage reductions
• Standard and custom mounting flanges, as well as rim and stud patterns
The ELITE parallel shaft wheel drives are available in 3 different sizes. Elite will provide customized parallel shaft wheel-drive solutions for any specific application.
Features
• Compact Design
• Lightweight Design
• Helical Ground Gears
• Quiet Operation
• Different Ratios
• Higher Torque Output
• Interchangeable with OMNI Solutions Specifications
• Torque range：400 ... 1200 Nm （
• Gear ratios：20 ... 65
• Input speed：up to 5,000 rpm （
• Brake options：Hydraulically released parking brake on request
• Applicable motors：AC, PMSM, DC

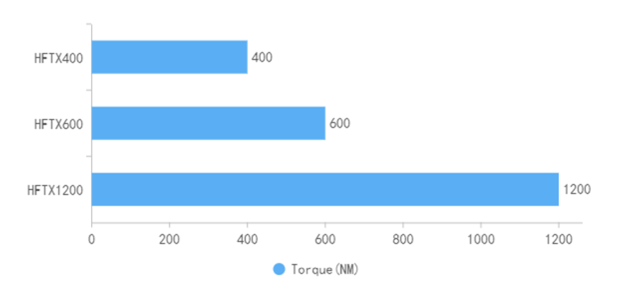

Torque Range Charts
Tecnical Data
| Model | Max.Output Torque(NM) | Ratio | Max Input Speed（Rpm） | Motor Type | Application |
| HFTX400 | 400 | 20-51 | 5000 | AC,DC,PMSM | Scissor lifts,Zero-turn mower |
| HFTX600 | 600 | 20-52 | 5000 | AC,DC,PMSM | Scissor lifts,Zero-turn mower |
| HFTX1200 | 1200 | 20-65 | 5000 | AC,DC,PMSM | Scissor lifts,Zero-turn mower |
